**Welcome my friends to your site to learn electrical engineering .Today I present to you How does Three-Phase Electricity work? Basic principles**

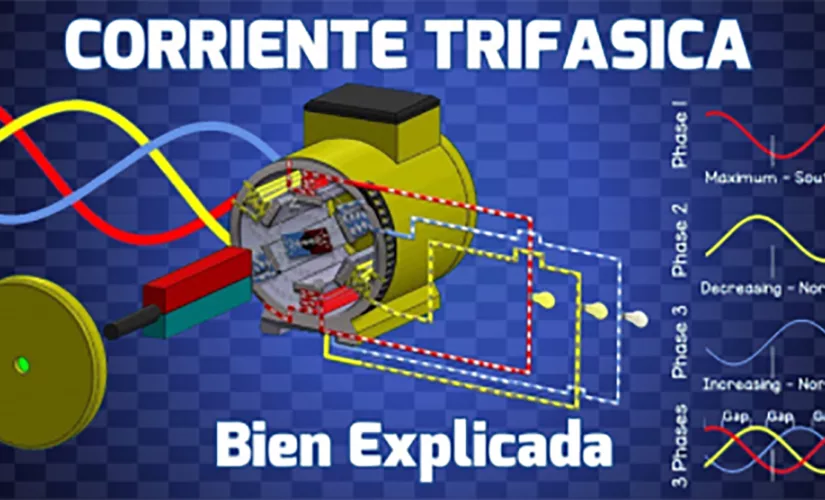

In an asymmetric three-phase power supply system, three conductors each carry an AC of an equivalent frequency and voltage amplitude relative to a standard reference, but with a phase difference of 1 third of a cycle between each. The common reference is typically connected to ground and sometimes to a current-carrying conductor called the neutral. thanks to the phase difference, the voltage on any conductor reaches its peak at one-third of a cycle after one among the opposite conductors and one-third of a cycle before the remaining conductor. This phase delay gives constant power transfer to a balanced linear load. It also makes it possible to supply a rotating magnetic flux in an electrical motor and generate other phase arrangements using transformers (for instance, a two-phase system employing a Scott-T transformer). The amplitude of the voltage difference between two phases is {\displaystyle {\sqrt {3}}}{\sqrt {3}} (1.732…) times the amplitude of the voltage of the individual phases.

The symmetric three-phase systems described here are simply mentioned as three-phase systems. Although it’s possible to style and implement asymmetric three-phase power systems (i.e., with unequal voltages or phase shifts), they’re not utilized in practice because they lack the foremost important advantages of symmetric systems.

In a three-phase system feeding a balanced and linear load, the sum of the instantaneous currents of the three conductors is zero. In other words, the presence in each conductor is equal in magnitude to the sum of the currents within the other two, but with the other sign. The return path for the present in any phase conductor is that of the other two-phase conductors.

Constant power transfer and canceling phase currents are possible with any number (greater than one) of phases, maintaining the capacity-to-conductor material ratio that’s twice that of single-phase power. However, two phases lead to a less smooth (pulsating) current to the load (making smooth power transfer a challenge), and quite three phases complicate infrastructure unnecessarily.[4]

Three-phase systems may have a fourth wire, common in low-voltage distribution. this is often the neutral wire. The neutral allows three separate single-phase supplies to be provided at a continuing voltage and is usually used for supplying multiple single-phase loads. The connections are arranged so that, as far as possible in each group, equal power is drawn from each phase. Further up the distribution system, the currents are usually well balanced. Transformers could also be wired to possess a four-wire secondary and a three-wire primary while allowing unbalanced loads and therefore the associated secondary-side neutral currents.
